Products
Thirteen products, one plant.
The unit of sale is a plant, not a machine — but every machine in it is specified, drawn and supplied separately too. Each sheet below cites the document its figures came from.
Sold as a set
Complete lines
Plant · The complete line

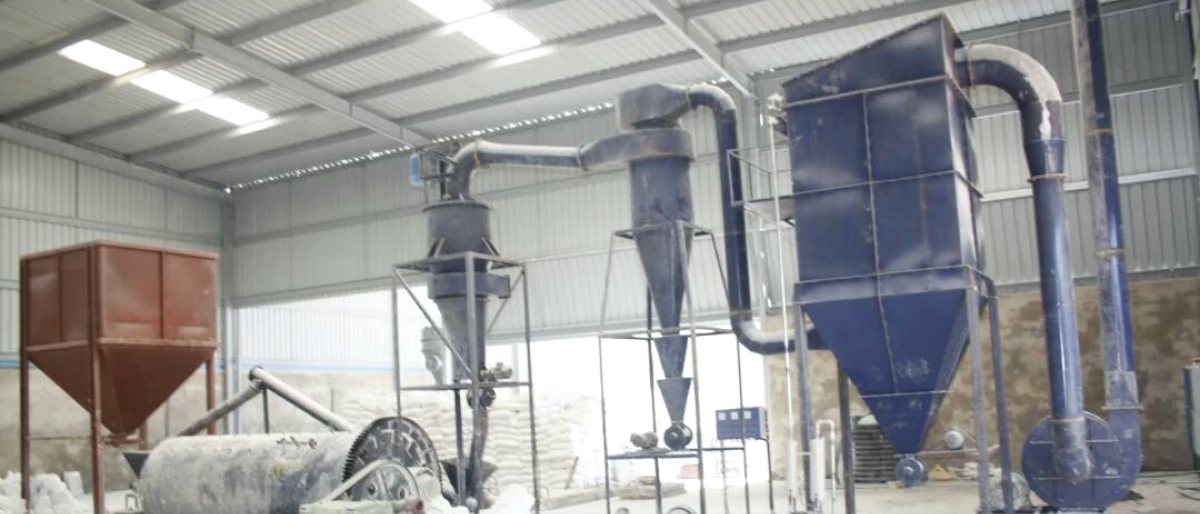

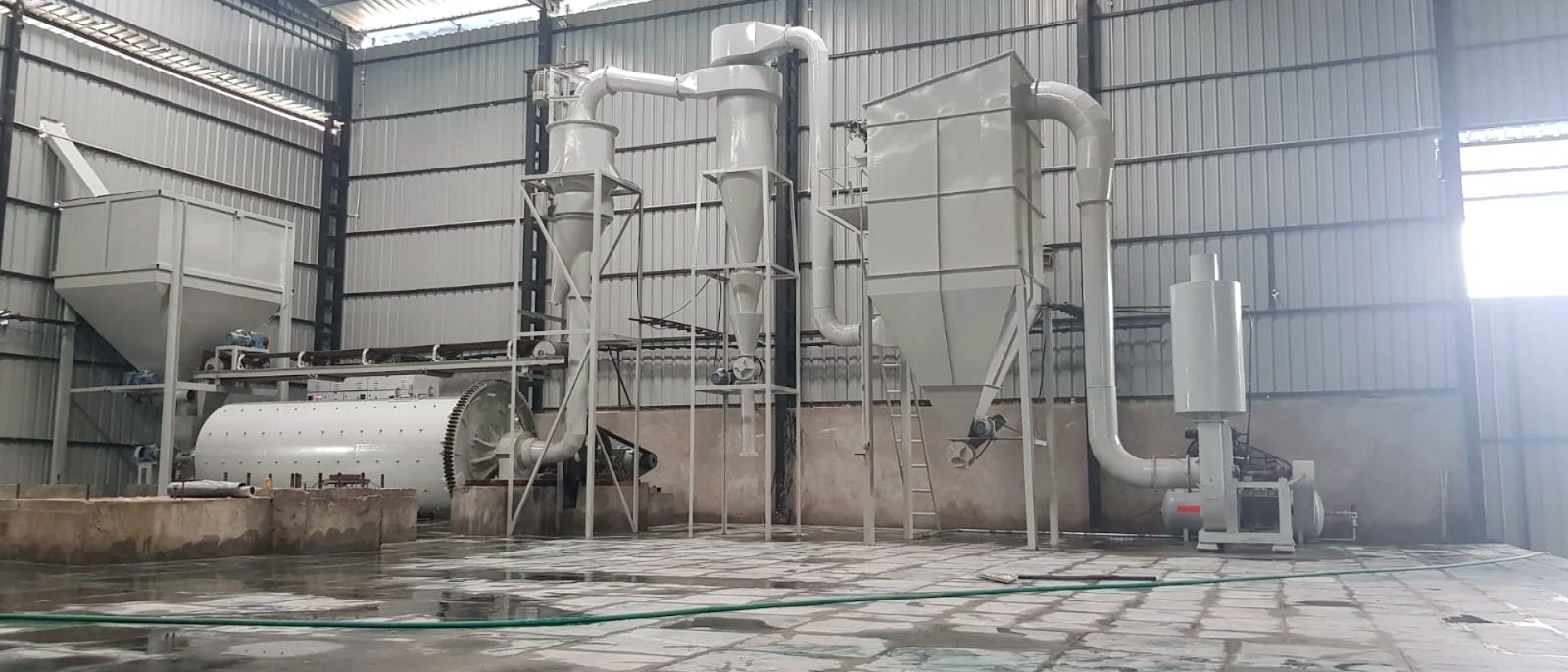

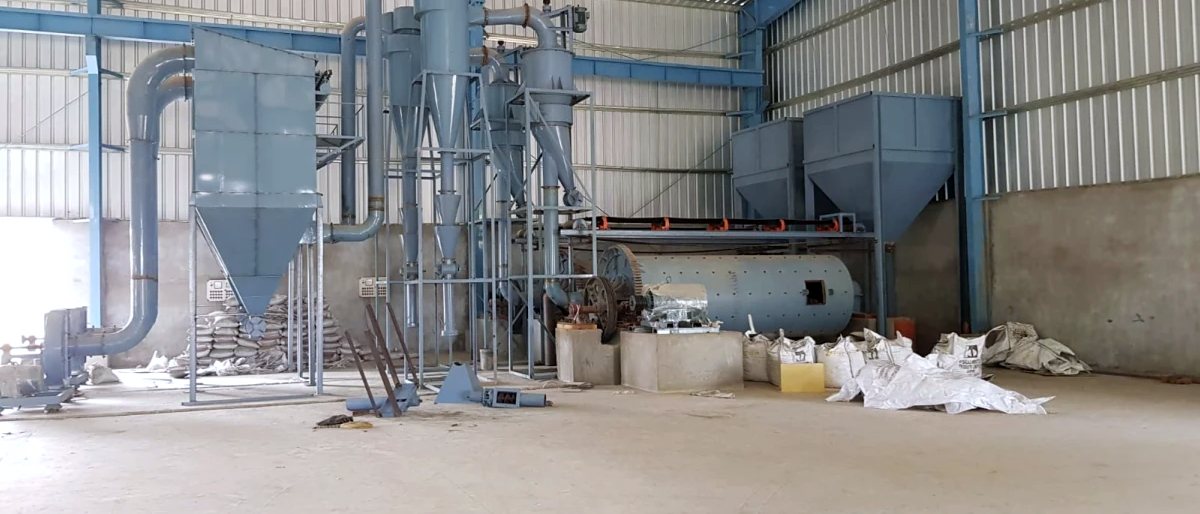

Micronizer Plant
The unit of sale is a plant, not a machine. Ten machines, physically connected, that take crushed mineral rock and…
Plant · P36 · surface modification
Mineral Powder Coating Plant
Ground mineral powder treated with stearic acid so it turns hydrophobic — the difference between a filler that…
Specified and supplied separately too
Machines and consumables
Machine · 14 ft × 6 ft dia

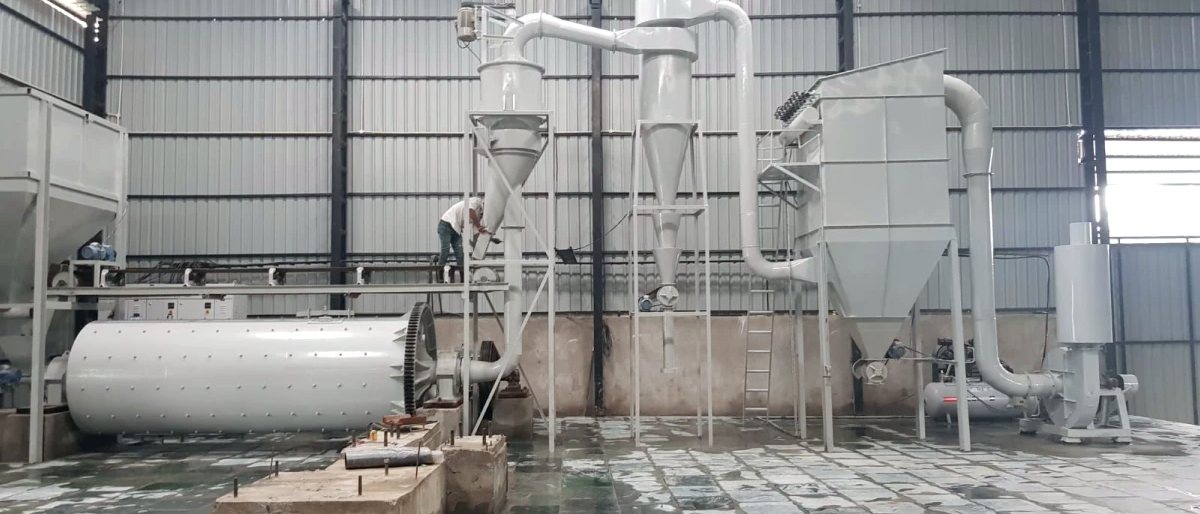

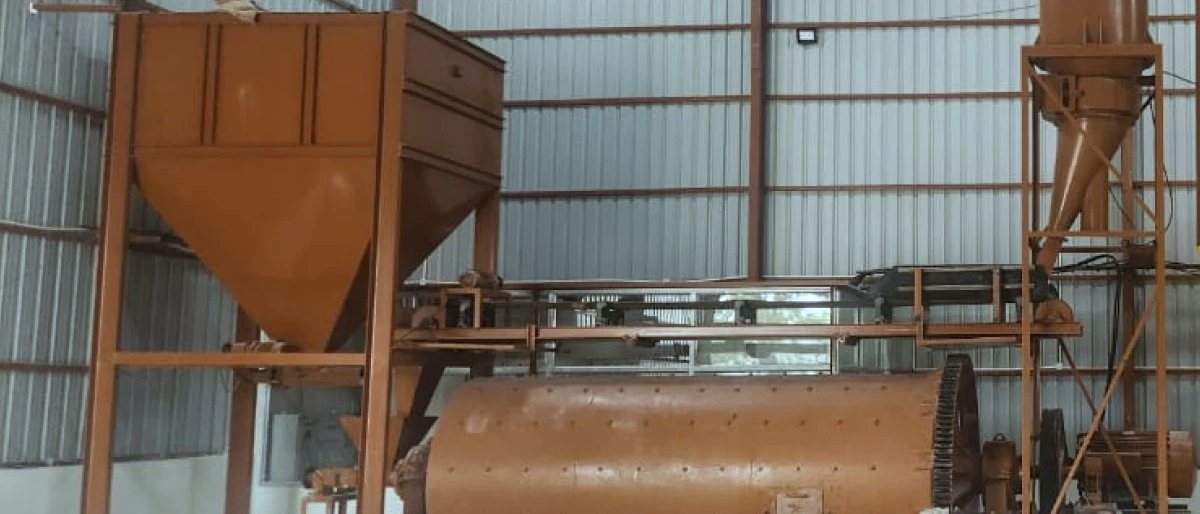

Air-Swept Ball Mill
The grinding stage. A 6 ft diameter, 14 ft long shell turning at 20 RPM, charged with 11–12 tonnes of alloy-cast…
Machine · High-efficiency, 1000 mm
Dynamic Classifier
The machine that decides how fine the product is. A rotating cage inside a static guide-vane ring, with the cut point…
Machine · DC plant, P36
Descendicator
A beater-type disintegrator between the crusher and the mill. Required when the feed arrives as 30/80 mesh grains.
Machine · 16 in × 9 in

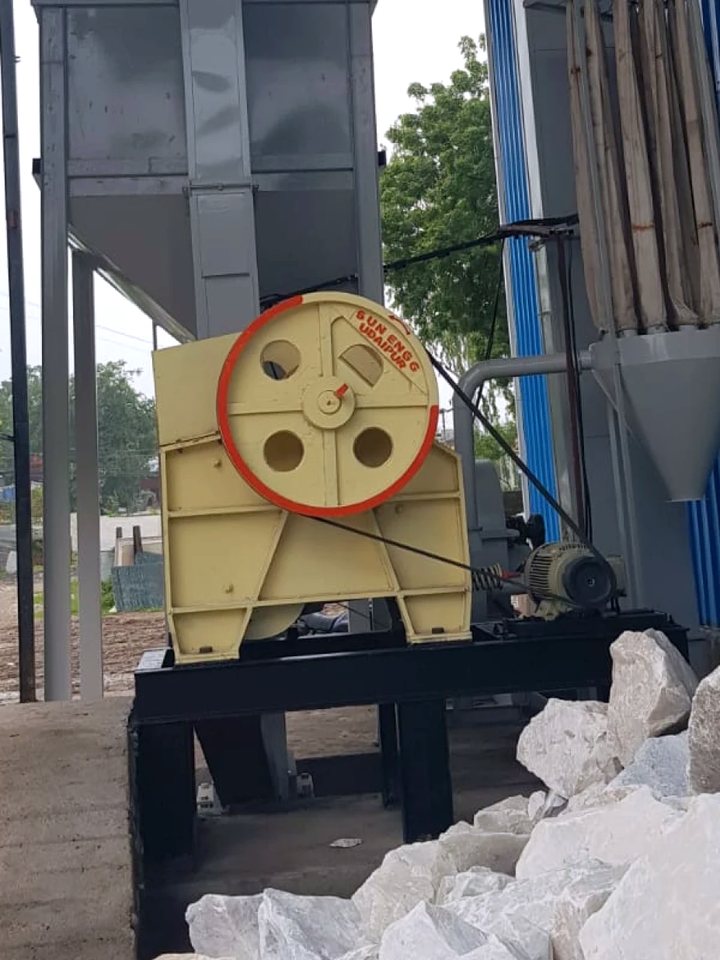

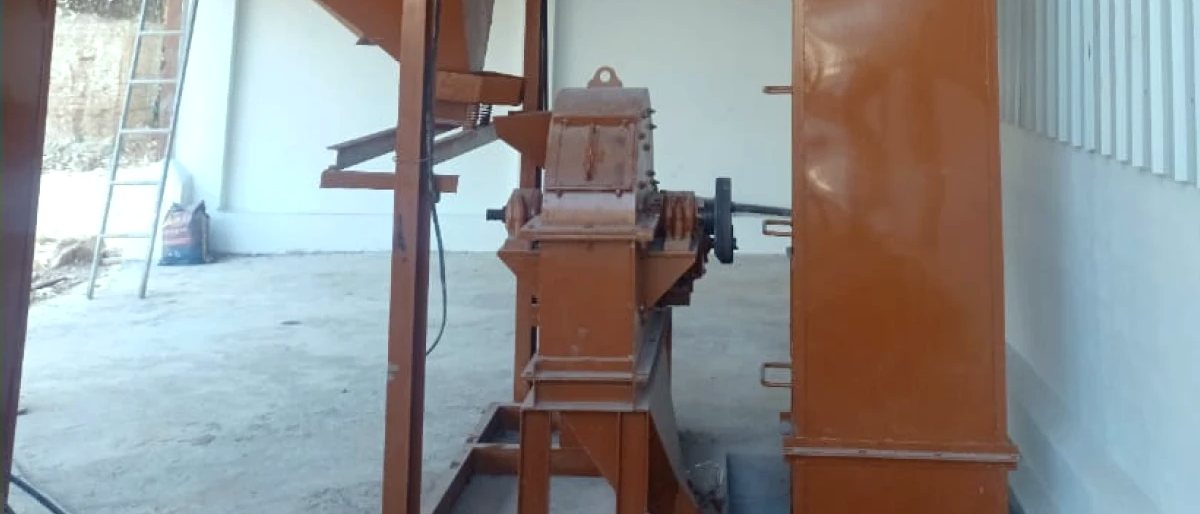

Jaw Crusher
Single-toggle primary crusher at the head of the line. Reduces run-of-mine rock to a size the elevators and the…
Machine · Reverse pulse jet
RPJ Bag Filter
Collects the product out of the air stream. Cleaned on line, so the plant does not stop for the filter.
Machine · 300 mm, VFD
Rotary Airlock Valve
Discharges collected powder out of the filter hopper without letting air in. A small machine that decides whether the…
Machine · 400 CFM
Centrifugal Blower
Draws air through the whole circuit — mill, classifier, filter — and out. The air is what carries the product; the…
Machine · Dust proof
Bucket Elevator
Vertical handling between stages. Used instead of pneumatic conveying throughout the plant — four of them in the full…
Machine · 6 in screw · belt
Screw Feeder & Conveyors
Metered horizontal handling. A screw feeder sets the rate into the mill; a belt conveyor returns coarse material from…
Machine · 8 t and 10 t
Feed & Storage Hoppers
Buffer capacity between stages, so a stop upstream does not immediately stop the mill.
Consumable · Hi-chrome / alloy cast
Grinding Media
The working surface of the mill. Supplied as a charge with a new plant and as a topping-up consumable thereafter.
Enquiry
Something else?
Tell us the mineral, the feed size, the target micron and the tonnage. That is enough for us to propose a line.
Get in touch →Also supplied
Around the machines.
Wear spares
A 44-item spares programme covering liners, blades, bearings, pinions, pulleys and shafts. Spares →
Control panel
PLC panel with variable-frequency drives, quoted as a separate line item so a customer who already has one is not made to buy it again.
Erection and commissioning
An AEW team on site for about seven days. What the site must provide →
Not sure which machines you need?
Tell us the mineral, the feed size, the target micron and the tonnage. That is enough for us to propose a line.
